Thermal pads have become more popular because of their increased thickness and flexibility. They can be applied quickly and easily, and the gaps between surfaces are erased. It’s critical, though, to approach this decision with a heavy heart.
Our ranking of the most delicate thermal pads for GPUs and PCs considers factors such as thermal conductivity, size, and the opinions of industry experts.
Choosing A Thermal Mattress Pad
The following factors should be taken into account while looking for the best GPU thermal pads for your computer or laptop:
Thermoelectric Coefficient.
The thermal interface transmits heat from the motherboard’s components to the heatsink in a critical way.
5-6 W / mK is standard for most models.
PCs and laptops with well-thought-out cooling systems will benefit from this.
Thermal spacers with a 10 W / mK value are recommended for a crowded chassis and excessive chip heating.
Thickness.
The first step is to establish the distance between the radiator and the heating element, which may be done using documentation or firsthand knowledge.
Most of the time, it’s somewhere in the 0.5-3.5 mm range. The thermal paste may be replaced by 0.1 mm with independent solutions; however, their application must be made with extreme caution.
To ensure that the needed thickness is met, look for gaskets that may be joined together without compromising quality if none are readily available.
Material.
Various ceramic additions improve the efficiency of heat transmission. Thermal and mechanical properties are optimized for optimal performance.
Thermal pads made of silicone are universally applicable to all electronic devices, including computers, laptops, and radios.
When components are dropped, the Material reduces the risk of damage and is best suited for limited surface contact. The sealant used to install copper solutions necessitates extra care while gauging the size of the gap.
In the comparison test, they come in somewhat in the middle in terms of heat conductivity.
Among the most OK laptop and PC, thermal spacers on our list are high-quality models with a wide range of thicknesses.
The goods on this list are exceptional in quality and won’t let customers down with a short lifespan.
Choosing Between Thermal Paste And Thermal Pads: What’s The Difference?
If the chip and heatsink are separated by 0.5 mm, a thermal pad is the best choice for the circumstance. The cooling quality degrades dramatically as the thickness of the thermal paste layer increases.
Most solutions will prevent laptops and PCs from overheating, even if pricey gaskets and pastes have a lower thermal conductivity than cheaper alternatives.
Thermal interfaces are straightforward, but silicone gaskets reduce the likelihood of beginning errors. Most computer equipment users follow the manufacturer’s recommended settings.
When this happens frequently, the cooling system becomes unbalanced. These are the best five GPU cooling pads for laptops and desktops.
At a Glance:
- AK-TT300-01
- MetalPad by Coollaboratory
- Extreme Gelid GP 01 A TP-GP-01
- Thermostat Arctic
- Thermal Pad Thermalright Odyssey
- Best Thermal Silicone Pad
- AKS AK-TT300
- ACTPD00001A Arctic Thermal Pad
- Thermocool Alphacool Pad
- Grizzly ceramic thermal pad
- Thermal Pad: Gelid Gp Extreme
- Foil Thermal Pads from Coollaboratory Liquid MetalPad
The Best Thermal Pads For Laptops That You Can Buy Today
AK-TT300-01
Add Product Award
SPECIFICATIONS
Temperatures that are a bit cooler are ideal | Country: Taiwan | At 1.2 W/mK, the thermal conductivity of an object is | 1.5 mm is the bare minimum for thickness | Eighth Place in the Class of 2022
REASONS TO BUY
✓reliability and safety of the materials
✓Includes two gaskets
✓Price
REASONS TO AVOID
✗Increased thermal conductivity
✗More than 2 g / cm3 density
Because of the limited thermal conductivity, the solution cannot be regarded as helpful in cooling the GPU and CPU. Still, it is effective for cooling other PC components and radio equipment. Two tiny spacers are included, each measuring 30 mm by 30 mm. Electronic components will not be damaged by this low-cost thermal pad’s elastomeric silicone, which is resistant to high temperatures. The reviewers also mention the model’s flexibility and the complete filling of imperfections.
MetalPad by Coollaboratory
Add Product Award
SPECIFICATIONS
Incredibly metallic content | Country: Germany | 10 W / mK is the thermal conductivity coefficient | Minimum thickness: 0.1 millimeters | Rate (in 2020): 9.8
REASONS TO BUY
✓No heat loss to the chiller is possible.”
✓Better is thermal conductivity.
✓Thermal pastes are a lot less costly.
✓Non-toxic
REASONS TO AVOID
✗Must be handled with utmost caution.
✗Thermal pads are often thicker than this.
Thermal pads may be used on the chips even in conventional laptops because of the chip’s modest thickness. However, the repair is complex due to the element’s enhanced brittleness. It is possible to get exceptionally efficient heat conductivity when using pure liquid metal. If you’re not careful, you might have a short circuit because of the high electrical conductivity. Using this approach, temperatures may be reduced by more than 8 degrees Celsius. Any more excellent material may be used with this product since it is RoHS-compliant.
Extreme Gelid GP 01 A TP-GP-01
Add Product Award
SPECIFICATIONS
The quickest and easiest way to get started | Country: PRC | Temperature conductivity: 12 W/mK /°C | 0.5 mm is the minimum thickness | Rate (in 2020): 9.8 | 80 mm length by 40 mm broad heat transfer pad.
REASONS TO BUY
✓Excellent conductivity of heat
✓Enhancing the suppleness of the skin
✓Defending against corrosion and igniting
REASONS TO AVOID
✗It is possible to have difficulties removing it.
Because of its physicomechanical properties, it can completely cover electronic components and eradicate any imperfections. The density is 2.8 grams per cubic meter. The model’s exceptional quality may be attributed to the well-balanced ceramic and metal foundation. It is non-conductive. The thermal spacer may cover the HDD casing or portions of the printed circuit boards. The manufacturer guarantees the product’s non-toxicity, and cutting it up is simple. Heat transfer pads are recognized for their exceptional adherence and long-term performance in evaluations. Many laptop users have also commented on the decrease in CPU and GPU temps while under heavy load.
Thermostat Arctic
Add Product Award
SPECIFICATIONS
Elasticity is improved | Country: Switzerland | Six watts per mK of thermal conductivity | Minimum thickness: 1 mm | A ten-star rating is appropriate for this film | A model that can handle activities ranging from -40 to +200 degrees Celsius.
REASONS TO BUY
✓Quality of adherence to a specific surface
✓Density more than or equal to 3 g/cm3
✓Short circuit protection that is dependable
REASONS TO AVOID
✗Overcharge
The company offers a thermal pad that measures 145 x 145 mm if the original is too small for laptops and PCs. Silicone and a variety of tiny particles form the basis of the solution. The temperature reduction on the video card is 5-7 oC. Users report that the element’s performance is unaffected by the addition of additional layers. Even after extended periods of heavy usage, desktops and laptops retain their pristine appearance.

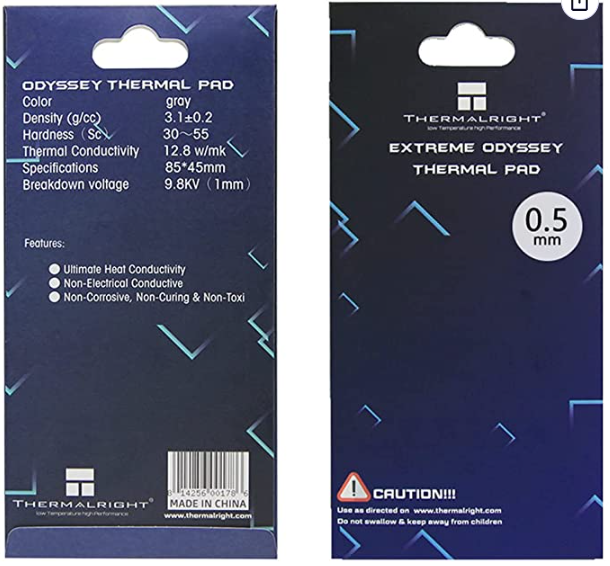

Thermal Pad Thermalright Odyssey
Add Product Award
SPECIFICATIONS
Thermal conductivity is at its highest point | Country: Taiwan | Insulation loss per unit area in terms of heat transfer: 12.8 W/mK | 0.5 mm is the minimum thickness | A ten-star rating is appropriate for this film | Thermal pads have a precisely proportion proportional viscosity of 3.1 g/cm3.
REASONS TO BUY
✓Versatility
✓It’s a great way to gauge how challenging something is.
✓Extended life expectancy
REASONS TO AVOID
✗Not the most elongating Material.
New generation consoles will benefit from the model’s enhanced Shore hardness.
Due to the substrate’s ease of installation and density of more than 3 g/cm3, have received favorable evaluations. In stress testing and current games, owners report a temperature drop of 5-6 degrees Celsius while using only one spacer for many parts. The substance does not carry electricity or contain any potentially harmful ingredients, and it also does not rust.
Best Thermal Silicone Pad
Add Product Award
Thermal Pads from Arctic Cooling.
For usage between high-temperature components and heatsinks, this device is ideal.
The backing’s silicone material is elastic and flexible, making it easy to attach and fill existing air spaces. The Material’s strong thermal conductivity lowers the temperature of the components, preventing overheating. In most situations, laptops are the only devices that can utilize.
In general, processors should avoid it. Arctic Cooling Thermal Pads have a 12-month life expectancy. Low-pressure applications are a good fit for this.
The following are the item’s measurements:
5-centimeter length
Five centimeters wide
0.1 cm in thickness.
REASONS TO BUY
✓a high degree of adaptability;
✓comfort in usage;
✓Pre-measurements are not required.
✓Excellent work on the cutting.
REASONS TO AVOID
✗A lot of money.
✗Short-lived.
AKS AK-TT300
Add Product Award
Silicone elastomer is used to manufacture this brand’s products, ensuring their effectiveness. The thermal spacers from Akasa, the AK-TT300, are designed to eliminate surface roughness while also qualitatively filling any air spaces between components. Heat is removed from the heating components and then dissipated from the radiator due to their high thermal conductivity. Using a material with such an elastic and flexible structure makes it possible to remove any construction gaps. These substrates may be used at temperatures ranging from -40°C to +160°C. Two gaskets are included in the Akasa AK-TT300 package. The following are the item’s measurements:
Three centimeters in length
a 3-centimeter width
Thickness is 0.15 cm. / 0.15 in.
REASONS TO BUY
✓The adaptability of application;
✓a high rate of heat transfer;
✓a long enough shelf life,
✓Usefulness.
REASONS TO AVOID
✗No such thing.

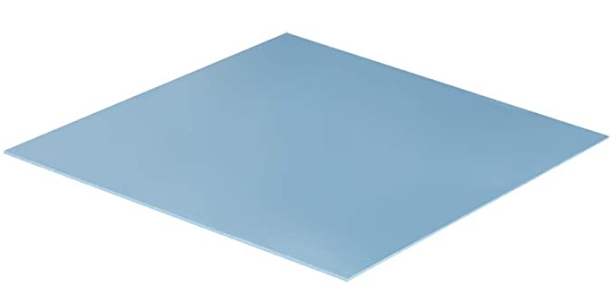

ACTPD00001A Arctic Thermal Pad
Add Product Award
In the world of silicone thermal pads, these items are also included. They have a low dielectric constant and robust resistance to electricity because of extra additions in the substance. This eliminates the possibility of electrical circuit shorts in constructions of any kind. Arctic Thermal Pads ACTPD00001A are primarily used in low to medium thermal demand buildings. The usage of this substance is recommended by computer scientists in areas where thermal grease leaks out during heating and gets on the circuit boards, causing problems.
Thermal pads are available in various sizes and thicknesses from the maker of the brand in question. Specimens are typically 6 g in weight. This makes it possible to cut the substrate following the essential characteristics and essential features. Arctic Thermal Pad ACTPD00001A may be used effectively with considerable air gaps and uneven surface of component components.
Insulation material: arctic thermal pad actpd00001a
The following are the item’s measurements:
145 mm in height
145 mm in width
0.5 mm is the thickness.
REASONS TO BUY
✓When pieces have significant gaps and surface flaws, apply this compound.
✓the dielectric constant is low;
✓high electrical current resistance;
✓Size and thickness options.
REASONS TO AVOID
✗lower and medium heat loads;
✗High cost.
Thermocool Alphacool Pad
Add Product Award
Radiators are used to transfer heat from computer equipment’s heating electrical components before it is dissipated using the products of the offered brand. Surface shapes generally feature roughness and unevenness; thus, silicone components’ flexible and elastic texture provides a tight fit for substrates. They may also be utilized at low pressure because of the composition. Pieces of the product are offered separately.
The following are the item’s measurements:
centimeters in length
a width of 100 millimeters,
0.5mm thickness.
REASONS TO BUY
✓ability to be used in a variety of ways
✓an excellent product or service
✓efficiency.
REASONS TO AVOID
✗Not found.
Grizzly ceramic thermal pad
Add Product Award
It falls within the ceramic substrates group. Nano-aluminum oxide and ceramic silicon are the primary components. They have excellent heat conductivity, elasticity, and flexibility because of their unique makeup. These thermal spacers are easy to employ since they correctly fill up the tiniest spaces between electrical components in constructions. All features that come into touch with the substrate will function well if the heat transmission is optimized and consistent. This product does not affect the environment or human health in any way. The Thermal Grizzly Minus Pad 8 has a temperature range of -100 °C to +250 °C. Each of the 11 g products is offered separately.
The following are the item’s measurements:
The length is 30 millimeters.
In this case, the breadth is around 30 millimeters.
0.5 mm is the thickness.
REASONS TO BUY
✓a high standard of excellence;
✓a simple set-up process;
✓efficiency;
✓Kindness to the environment
REASONS TO AVOID
✗Not found.
Thermal Pad: Gelid Gp Extreme
Add Product Award
Computer professionals have thoroughly tested thermal paste manufactured by this firm, and this product includes all of the components needed in the manufacturing process. Gelid GP Extreme thermally conductive underlays have a high degree of flexibility, making it possible to conform to the shape of whatever is being used.
They transfer heat from the heating components to the radiator, further dissipated because of their high thermal conductivity. This keeps computer components from overheating and prolongs their lifespan.
The following are the item’s measurements:
In terms of length, it’s around 80 millimeters.
a 40-millimeter width
2 mm is the thickness.
REASONS TO BUY
✓High-quality;
✓“comfort and simplicity;”
✓Optimal settings.
REASONS TO AVOID
✗No one has come forward to identify this person.

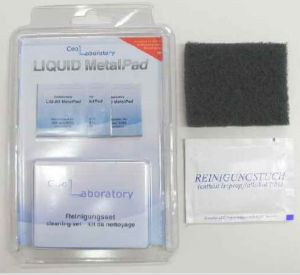

Foil Thermal Pads from Coollaboratory Liquid MetalPad
Add Product Award
Liquid metal is used to create the tiny sheets of foil that make up this brand’s products.
These thermal pads can efficiently remove heat from hot components and transfer it to radiators as an alternative to pasting. Coollaboratory Liquid MetalPads are simple to attach. If you do anything with it, you won’t harm it. As a result of its excellent thermal conductivity, surplus heat is rapidly and effectively transferred.
The product is marketed as a one-off and has the following dimensions:
about 0.02 millimeters x 1.5 inch
REASONS TO BUY
✓Replaces thermal paste to the letter;
✓a rapid rate of heat transfer;
✓comfort in usage;
✓The protection of the materials used in construction.
REASONS TO AVOID
✗Because air holes cannot be utilized.
Frequently Asked Questions
How Effective Is Arctic Thermal Pad For Your CPU and GPU?
PC gamers and overclockers alike should make sure their CPUs are kept cool. Many people turn to the Arctic thermal pad to keep a CPU cool. When it comes to keeping your graphics card cool, Arctic thermal pads are the way to go. Easy to put in, and just taking a few simple tools are excellent features. Using a real-world scenario, we’ll walk you through the process in this post.
Does Using Thicker Thermal Pads Make Them More Effective?
The correct thickness of the thermal pad
1. For dispersing heat from electronic components, thermal pads must be thick enough.
2. A thermal pad that is too thin may result in poor cooling, while a thermal place that is too thick can increase the weight and expense of the product.
3. There is no ideal thermal pad thickness depending on the application.
4. 1/8 inch per watt rating is a decent rule of thumb. Thermal pads should not exceed 0.125 inches in thickness if you use an AMD Athlon 64 X2 CPU at 2GHz.
Is 1mm Thermal Pad Enough To Use?
Thermal pads with one-millimeter thickness may be effectively provided they cover the whole chip and heatsink surface area. This thickness will work as long as it’s not excessively compacted or too thin. The pad will be less effective if it is squeezed.
To How Often Should Thermal Pads Be Replaced?
When the cooling or heating capacity of the thermal pads is depleted, it is time to replace them. The thermal pad’s Material might affect how often it has to be changed. Depending on the quality of the glue used to attach the place to the metal backing, some thermal pads may endure for years while others may only last a few months.
Thermal Pads: Can You Use Them Both?
Thermal pads cannot be used more than once. This is because the buffer is not designed to be used as a second layer. Each side of the CPU should have its pad. Putting two places on either side of the CPU will cause it to malfunction.
Is Paste CPU Better Than Thermal Pads?
When keeping the CPU cool, essential thermal features pads are a standard accessory in your toolbox. Thermal pads are becoming more and more common as a replacement for paste.
A thermal pad has several advantages over the paste, and it is increasingly becoming the preferred method of cooling your CPU.
Temperature conductive material is used to make thermal pads, then attached to the CPU. Unlike paste, they don’t leave behind any residue, which may occasionally create processor issues.
Thermal pads’ substance has a larger heat capacity than paste; therefore, it takes longer to reach its maximum temperature and stays more relaxed for a longer time.
Are Thermal Pads prone to charring?
It’s a fascinating topic. It’s a question that’s come up before, but the solution is ambiguous. There are so many viewpoints, so we’ll do our best to cover them all.
According to some, GPU thermal pads melt because they can’t disperse the heat quickly enough. According to some, the heat-resistant properties of GPU thermal pads prevent them from melting. Some claim that these pads cannot melt since their melting point exceeds the GPU’s operating temperature during gaming.
Do Thermostatic Pads Cause Any Harm When Touched?
Because metal is a conductor of heat, computer thermal pads are not safe for human contact. Long-term skin contact with the place might result in severe burns.
Conclusion
Any computer construction would be incomplete without thermal pads. They assist in maintaining your computer functioning at a high level of efficiency. Thermal pads come in various shapes and sizes, but which one is best? We’ll look at some of the finest thermal places and see which one is ideal for you in this post.
If you have any reason to believe that your computer equipment is malfunctioning, you should not put off calling an expert for assistance. Every extra day or hour might exacerbate the situation, causing it to spiral out of control and eventually lead to equipment failure.
To maintain your computer or laptop in good working condition, it is essential to get prompt advice, conduct regular inspections, and replace the thermal pads (if requested by the client) from the list provided to you.
Thermal pads, thermal tapes, and thermal adhesive all have unique applications, and it is not advisable to substitute any of them for another. Thermal pads are often used to fill in gaps between components, but they may also be used in conjunction with thermal tapes to secure them in place firmly. When attaching the elements, a thermal adhesive is the best option. If you make a terrible choice in thermal Materials, you might wind up in problems and risk damaging your components.
